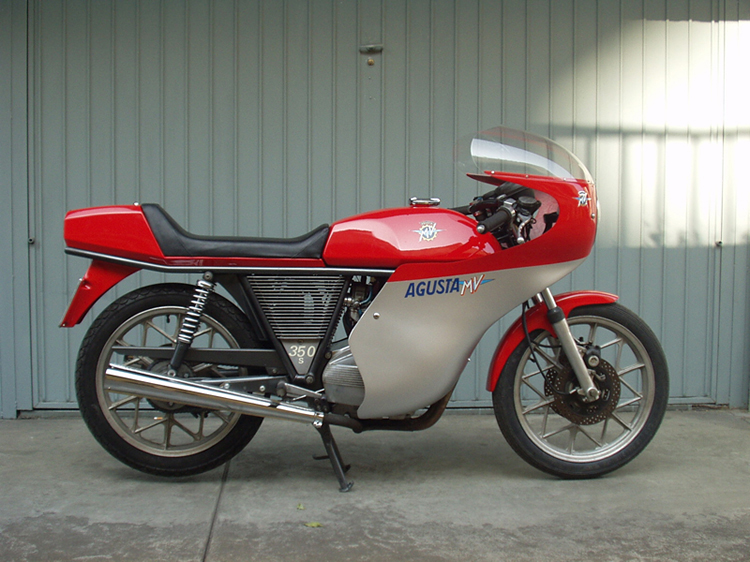

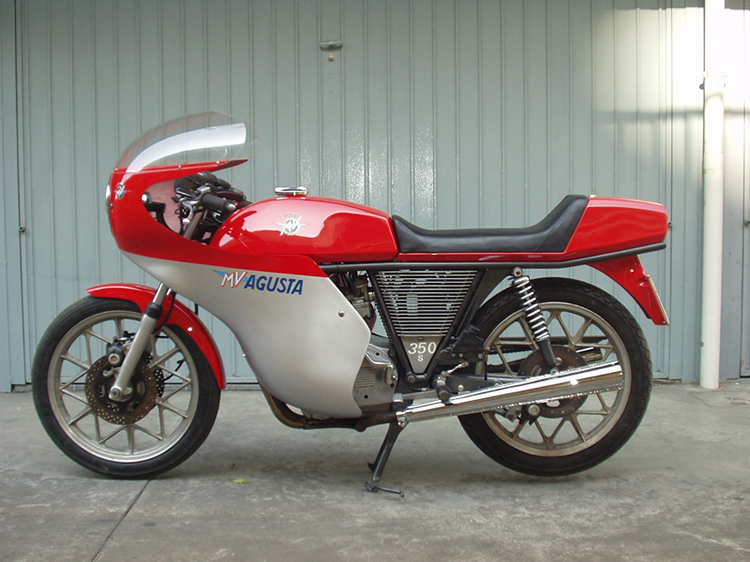

MV AGUSTA 350 ELETTRONICA
cc. 349 anno 1972-1975
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
immagini visibili ai soli utenti registrati
SCHEDA TECNICA
Make: MV Agusta
Model: 350 Sport Elettronica
Start Year: 1972
End Year: 1974
Capacity: 349 cc
Bore Stroke: 63.0 x 56.0
Engine Configuration: Inline
Number of Cylinders: 2
Engine Type: Four Stroke
Valves Per Cylinder: 2
Valve Operation: Pushrod
Power: 22 Kw (29.5 Bhp or 29.9 Ps) @ 7900 rpm
Compression Ratio: 9.5:1
Carburettors: 2 x 24mm Dellorto UB
Cooling: Air Cooled
Gears: 5
Transmission: Chain Drive
Weight: 149 Kg (328 lb)
Front Wheel: 2.75-18
Rear Wheel: 3.25-18
Front Brake: Drum
Rear Brake: Drum
Top Speed: 167 Km/h (103 Miles per Hour)
Fuel Capacity: 16 Litres (3.52 UK Gallons or 4.23 US Gallons)

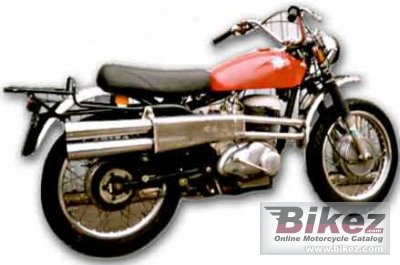

Notes: The 350 Sport Elettronica was a development of the original 250 twin and shared the same frame and basic engine with a range of twins which included a Scrambler, trials and touring models. The 360 degree parallel twin motor vibrated quite badly at higher rpm but less so than in the later Ipotesi model which had a stiffer frame. The MV was expensive for a 350 but the name, performance and looks justified the price.
